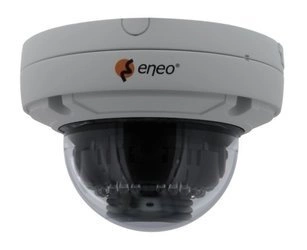

Kamera IP IED-62M2812MAA
- 1/2.8" Network Dome, Fixed, 1920x1080, Day&Night, WDR, 2,7-12mm, Infrared, IP66
- 1/2,8" Sony STARVIS CMOS
- Resolution max. 1920x1080, 25fps frame rate
- Motorised vary focal lens 2,7~12mm with P-Iris
- Intelligent self-learning video analysis (IntelliVision inside)
- Wide Dynamic Range, T-WDR (120dB)
- Quad Streaming: H.264, H.265 x3, MJPEG x1, Smart Codec ROI Hi-Stream
- Micro SD Card (SDHC, SDXC)
- 1 x Alarm in and output as well as audio support
- Infrared illumination up to 30m
- PoE IEEE 802.3af Class 0,12VDC, IP66
- Supports ONVIF Profile S and Profile T
- Colour white
Specifications
| Camera type | Dome |
| Camera: | |
| Sensor size | 1/2.8" |
| Resolution standard | HD 1080p |
| Imager | CMOS, Sony STARVIS, Sensor IMX290 |
| System | True Day&Night |
| Sensitivity | 0,03 Lux, at F1.6, 40IRE |
| Low speed shutter | yes, automatic |
| Manual electronic shutter (MES) | 1~1/10000Sek. |
| Automatic electronic shutter (ESC) | 1~1/10.000sec. |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Flickerless function | yes |
| Backlight compensation | Smart BLC |
| Day/Night switching | day, night, auto |
| IR cut filter | switchable |
| White balance | automatic, manual |
| Video: | |
| Resolution max. | 1920x1080 |
| Stream types | Quad Streaming |
| Image transmission rate max. | 30 fps |
| Compression standard | H.264, H.265, H.264+, H.265+, M-JPEG |
| Lens: | |
| Lens type | Varifocal (motorized) |
| Zoom factor | 4x |
| Focal length | 2,7 - 12 mm |
| Digital zoom | yes |
| MOD (Minimum object distance) | 0,5 m |
| Iris control | P-iris, DC |
| Resolution | 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3) |
| Vertical angle of view | 56 - 18 ° |
| Horizontal angle of view | 100 - 33 ° |
| DORI: | |
| Detection (25 px/m) | 40 - 130 m |
| Observation (62 px/m) | 16 - 55 m |
| Recognition (125 px/m) | 8 - 26 m |
| Identification (250 px/m) | 4 - 13 m |
| Features: | |
| Multicast compliant | yes |
| Motion detector | yes |
| Analysis functions | activity detection, motion analysis, tampering protection, Trip wire plus object counting, loitering detection, intrusion, Human detector |
| Alarm processing | recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out, Alarm Forwarding (Preset Call of eneo PTZ Dome) |
| Rotation range | 359 ° |
| Vertical tilt range | 0 ~ +90° |
| Audio | 2 Way Audio |
| Audio support | yes |
| Password protection | yes |
| e-PTZ support | yes |
| Internal storage | microSDHC card, microSDXC card |
| Menu languages | English, German, French, Russian, Chinese, Korean, Japanese |
| Privacy zones masking | Areas-ON/OFF switchable |
| Remote configuration | web browser |
| Web browser | MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited |
| User interface | Type B (white / blue) |
| Mirror function | H-flip, mirror |
| Digital Noise Reduction (DNR) | yes |
| Network: | |
| Network protocols | TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, UPnP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN |
| Interfaces / Inputs / Outputs: | |
| External connections | alarm output, alarm input, audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.40cm |
| Ethernet interface | 10Base-T, 100Base-TX |
| Alarm inputs | 1 |
| Alarm outputs | 1 |
| Serial interfaces | Ethernet |
| General: | |
| Series | eneo SN-Series |
| Dimensions (HxWxD) | 99x144mm |
| Illumination | infrared, 28x LED 850nm |
| Illumination range | approx. 30m |
| Colour (housing) | white |
| Colour (bubble) | clear |
| Housing | outdoor |
| Housing material | aluminium |
| Weight | 776g |
| Heater | no |
| Power consumption | 8,5W |
| Blower | no |
| Mounting | wall mount, ceiling mount |
| ONVIF | ONVIF Profile S, ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Window heater | no |
| Protection rating | IP66 |
| SDK | upon request |
| Supply voltage | 12VDC, PoE |
| Temperature range (operation) | -20°C ~ +50°C |
| Text display | supplied |
| Vandalism resistant | yes |
| Certificates | IK10 |
| Scope of delivery: | |
| Parts supplied | manual, eneo Site Manager, bag of screws |
| Notes: | |
| Remarks | Note that electronic adjustment aid such as Zoom / Focus or Pan / Tilt functions are not designed for continuous operation. Permanent use may affect the life of the camera |
