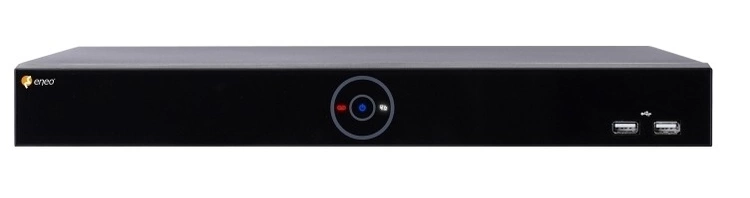

Rejestrator Eneo MSR-24N160005A
- Multisignal HD Video Recorder, 16-channel, 400fps, HD-TVI,AHD 960H, 2xSATA, HDMI, w/o HDD
| Video: | |
| Signal format | HD-TVI @ 5MP, AHD @ 5MP, Composite (FBAS), IP @ 3MP |
| Compression standard | H.264, H.265 |
| Display: | |
| Playback | full screen, 4 channel split, 9 channel split, 16 channel split, split sequence |
| Zoom function | in full screen mode (live and playback operation) |
| Live Display | 3840x2160, 1920x1080, 1280x720, 1024x768, max. 480fps |
| Recording: | |
| Operation mode | Pentaplex, live, playback, network, backup, record |
| Max. recording resolution | 2592x1944 |
| Recording speed | 160 fps @ 2592x1944, 200 fps @ 2560x1440, 400 fps @ 1920x1080, 400 fps @ 1280 x 720, 400 fps @ 960 x 540, 400 fps @ 704 x 576 |
| Max. recording rate | 400 fps, @1920x1080 |
| Recording | permanent, timer, movement, contact, panic, PoS-Text, event |
| Pre-alarm recording | up to 5sec. |
| Post-alarm recording | up to 60min. |
| Export of images or clip | USB-port external HDD |
| Features: | |
| Motion detector | Free selectable areas |
| Alarm notification | e-mail notification, alarm output, remote software, Live Popup, Spot Popup, Buzzer, PTZ Preset, FTP, Push (Mobile) |
| Alarm triggers | contact, motion detection, video loss, disk error, PoS-Text |
| Password protection | user control |
| Digital signature | watermark |
| Menu languages | English, German, French, Italian, Dutch, Chinese |
| Mobile access | iPhone, Android OS |
| Remote access | remote software, iPhone, Android, WEB Browser (Java) |
| Search function | date/time, event, Thumbnail, text, museum, Instant Playback |
| Event logs | yes |
| Covert camera mode | yes |
| Patrol mode | yes |
| GDPR functions | Four-eye principle, Defined storage times per channel, Differentiated authorisation management, Detailed log informations, Password cycle, Menu logout during inactivity, Full encrypted WAN, - |
| Network: | |
| Network | 1x 10/100/1000 Base-T RJ45 |
| Network protocols | TCP/IP, DHCP, Zeroconf, IPv4, IPv6, HTTP, UPnP, ARP, SMTP, RTSP, RTP, FTP, NTP |
| Data transfer rate | 328 Mbps |
| Data transfer incoming | 40 Mbps |
| Data transfer outgoing | 288 Mbps |
| Interfaces / Inputs / Outputs: | |
| IP channels | 4 |
| Channels total | 16 |
| Video inputs | BNC-female, automatic resolution and signal detection |
| Video inputs (amount) | 16 |
| Main video outputs | HDMI (4K), VGA |
| Spot monitor | composite (CVBS) |
| Interfaces external storage | USB, iSCSI, Maximal capacity 96TB, Intern: 2x HDD up to 28 TB max., 6x iSCSI (16TB lun) max. minus internal HDD capacity |
| Interfaces external storage | Maximal capacity 96TB, Intern: 2x HDD up to 28 TB max., 6x iSCSI (16TB lun) max. minus internal HDD capacity |
| Alarm inputs | 4 |
| Alarm outputs | 1 |
| Audio inputs | RCA, 4 |
| Audio output | RCA |
| Serial interfaces | RS-485, Coaxitron (HD Protocol) |
| Serial interfaces protocols | Fastrax IIE, Pelco D, Pelco P, UTC (HD signal format) |
| System requirements: | |
| Operation system | Linux |
| General: | |
| Series | eneo MSR-Series, eneo COAXIZE |
| Dimensions (HxWxD) | 44,9x375x318,2mm |
| 19" Rack mountable | no |
| Number of HDD (internal) | max. 2 x SATA |
| Control units (external) | mouse |
| Colour | anthracite / black |
| Harddisk capacity (internal) | 0 TB |
| Max. harddisk capacity (internal) | 28 TB |
| Housing | Steel metal with plastic front, desktop design |
| Weight | 2.5kg |
| Integrated writer | no |
| Power consumption | 37W |
| Remote Software | eneo Center |
| RAID | n/a |
| Supply voltage | 12VDC |
| Temperature range (operation) | 0°C ~ +40°C |
| Text insertion interface | POS/ATM |
| Scope of delivery: | |
| Parts supplied | remote viewer software, PSU, manual, mouse |
| Remarks | IP cameras of the PXB, PXC, PXD and PTB series are not supported by this product |
