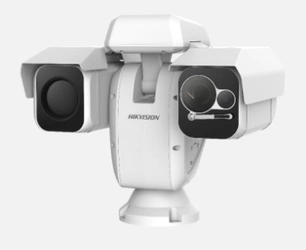

Kamera Hikvision DS-2TD6236-50H2L
- Thermal & Optical Bi-spectrum Network Positioning System
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Pixel Interval17μm
- NETDless than 40mk (@25°C,F#=1.0)
- MRAD0.34
- Field Of View7.47° × 5.61°
- Min. Focusing Distance7.5 m
- ApertureF1.0
- Response Waveband8μm to 14μm
- Optical Module
- Max. Resolution1920 × 1080
- Image Sensor1/1.9’’ Progressive Scan CMOS
- Min. IlluminationColor: 0.002 lux @ (F1.5 , AGC On ) B/W : 0.0002 lux @ (F1.5 , AGC On )
- Field Of View58.7° - 2.0° (Wide-Tele)
- Aperture RangeF1.5-F4.5
- Focus ModeAuto / Semiautomatic / Manual
- WDR120dB
- Shutter SpeedPAL: 1-1/30,000s / NTSC: 1-1/30,000s
- Day & NightIR Cut Filter
- Smart Function
- VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
- Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy±8 °C (14.4 °F)
- Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -15° to + 90° (auto flip)
- Pan SpeedConfigurable, From 0.1°/s to 160°/s, Preset Speed: 240°/s
- Tilt SpeedConfigurable, From 0.1°/s to 120°/s, Preset Speed: 200°/s
- Proportional ZoomYes
- Presets300
- Patrol Scan8; Up to 32 Presets Per Patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off MemoryYes
- ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT StatusTurn On/Turn Off
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
- Infrarred
- IR DistanceUp to 500 m
- IR Intensity And AngleAutomatically adjusted
- Network
- Main StreamOptical:50Hz:25fps(1920×1080), 25fps(1280×960), 25fps(1280×720) Optical:60Hz:30fps(1920×1080), 30fps(1280×960), 30fps(1280×720) Thermal: 50fps(640 × 512)
- Sub StreamOptical:50Hz:25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Optical:60Hz:30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 50fps(640 × 512)
- Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/MPEG4
- Audio CompressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjourl
- Simultaneous Live ViewUp to 20-ch
- User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
- Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Integration
- Alarm InputUp to 7-ch Input (0-5V DC)
- Alarm OutputUp to 2-ch Relay Output; Support Alarm Linkage
- Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
- Audio OutputLinear Level; Impedance: 600Ω
- EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
- SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
- Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
- Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
- ClientiVMS-4200
- Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
- General
- Menu LanguageEnglish
- Power24V AC
- Power Consumption120W
- Work Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
