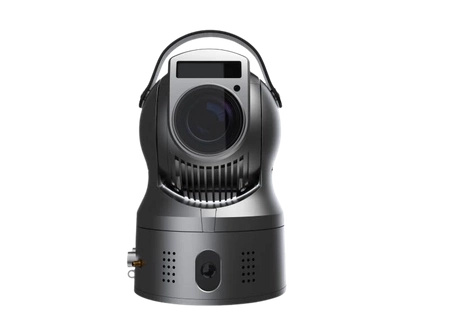

Zestaw LPR Hikvision iDS-MCD402-ES

iDS-MCD402-E
4G Dual-lens ANPR Portable Speed Dome

• Support for dual cameras, Lens1 : 1/1.8" progressive scan CMOS; Lens2 : 1/1.8" CMOS
• 36× optical zoom, 12× digital zoom
• 3D DNR/Defog/EIS
• Up to 100 m IR distance
• Quick installation with the magnetic base and the tripod bracket
• Replaceable battery for sustainable work
• 360° endless pan and -20° to 90° (auto-flip) tilt movement range for PTZ
• Embedded screen for status display, e.g. battery, GPS, 3G/4G, record status, storage capacity, Bluetooth, platform access, Wi-Fi, and smart algorithm mode
• Supports accessing via IE browser and client, and remote operation

Camera

• Image Sensor Lens 1: 1/1.8" progressive scan CMOS Lens 2: 1/1.8" CMOS
• Max. Resolution 3840 × 2160
• Min. Illumination

  Lens 1 : chromatic：0.005 Lux @ (F1.3，AGC ON) ; monochrome：0.0005 Lux @(F1.3，AGC ON)

  Lens 2 : chromatic：0.02 Lux @ (F1.7，AGC ON) ; monochrome：0.02 Lux @(F1.7，AGC ON)

• Day & Night Switch IR Cut Filter Automatically
• Zoom 36× Optical, 12× Digital
• Optical Image Stabilization Supported

Lens

• Focal Length Lens 1: 6 to 216 mm Lens 2: 2.8 mm fixed lens
• FOV Lens 1: Horizontal FOV: 59° to 2.0°, Vertical FOV: 34.2° to 1.1°, Diagonal FOV: 67.1° to 2.3° Lens 2: Horizontal FOV: 102°, Vertical FOV: 56°, Diagonal FOV: 123°
• Zoom Speed Approx. 4.6 s (optical lens, wide-tele)
• Aperture Lens 1: F1.3 - F4.6 Lens 2: F1.7

Event

• Smart Event: Vehicle recognition, face recognition, helmet detection, phone call, workwear detection, smoking detection, area invasion, intrusion detection (supports 4 areas)

Video

• Video Compression: H.264, H.265
• Video Format: PS
• Main Stream:
• Lens 1: 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 720 × 576)
• Lens 2: 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 704 × 240, 352 × 240)
• Sub-Stream
• Lens 1: 60 Hz: 12 fps(1920 x 1080); 30 fps (1280 × 720, 704 × 480, 704 × 240, 352 x 240)
• Lens 2: 60 Hz: 30 fps (1280 × 720, 704 × 240, 352 × 240)

Audio

• Audio Compression G.711ulaw, G.711alaw, G.722.1
• Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1)


• Image Format JPEG
• Wide Dynamic Range (WDR) 120 dB
• Image Enhancement 3D DNR, Defog, EIS

Screen

• Resolution 320 × 240
• Screen Size 2.0"
• Touchscreen Supported

Storage

• RAM 2 GB
• ROM 4 GB

IR

• IR Range: Up to 100 m
• IR Wavelength: 850 nm

Wireless Network

• Bluetooth: BT4.0
• Wi-Fi Protocol: 802.11 a/b/g/n/ac
• Wi-Fi Frequency Band: 2.412 to 2.472 GHz, 5.15 to 5.25 GHz, 5.725 to 5.875 GHz
• Cellular Network: Only available for models with /GLE : GSM: 850/900/1800 WCDMA: B1/B5/B8 FDD -LTE: B1/B3/B5/B7/B8/B20 TDD -LTE: B38/B40/B41
• Positioning Mode: GPS, Glonass

Network

• Protocol: HTTPS, RTSP, NTP, FTP
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP5.0

Interface

• Indicator: 1 Indicator for Charging/Working
• Button: Power
• SIM Card: Only available for models with /GLE /5G: 1 (Micro-SIM)
• Aviation Plug: 10-Core Aviation Plug, supporting RS-232, RJ45 and power input 9-Core Aviation Plug, supporting RS-485, LINE IN/LINE OUT, 5V output, Alarm I/O
• Extended Storage: 2 Built-in memory card slots, up to 256 GB each, supporting TF card

PTZ

• Movement Range (Pan): 360° endless
• Movement Range (Tilt): -20° to 90° (Auto-flip)
• Preset: 256
• Patrol Scan: 8 Patrols

General

• Operating Condition: -10 °C to 55 °C (14 °F to 131 °F). Humidity 95% or less (non-condensing)
• Power: 12 VDC, 5.0 A, max. 60 W
• Dimension: 550 mm × 420 mm × 245 mm (21.56" × 16.54" × 9.65")
• Weight: 11.75 kg (25.9 lb.)
• Installation Method: Wall-Mounted, Tripod-Mounted, Movable Bracket
• Client: Hik-Connect, HikCentral Pro, Hik-Connect, HikCentral Master
• Web Browser: Plug-in required live view: IE 10+
• Light Sensor: Supported
• MIC: Supported
• Speaker 2 Built-in speaker, Max. power consumption: 2.5 W, Max. sound pressure level: 102 dB (10 cm)
• Packing List
• 1 × AC power cord
• 1 × 345 cm Composite cable
• 1 × Lithium ion battery
• 1 × Mounting support plate for tripod
• 1 × Safety rope
• 1 × C92-screwdriver
• 1 × 500 × 395 × 257 mm, portable plastic box
• 1 × Battery Charger DS-MH1491
• 1 × tripod DS-MH1697

Battery

• Battery Type Lithium-ion battery, dismountable
• Capacity 13400 mAh
• Charging Time ≤ 4 h
• Battery Duration ≥ 9 h in 1080p resolution

Approval

• RF:
• CE-RED : EN 301 489-1 V2.2.3:2019; EN 301 489-3 V2.2.2:2019; EN 301 489-17 V3.2.4:2020; EN 301 489-19 V2.2.1:2022; EN 301 489-52 V1.2.1:2021; EN 55032:2015/A11:2020; EN 55035:2017/A11:2020; EN 50130-4:2011/A1:2014; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021; EN 300 328 V2.2.2:2019; EN 301 893 V2.1.1.1:2017; EN 301 440 V2.1.1:2017; EN 301 908-1 V15.1.1:2021; EN 301 908-2 V13.1.1:2020; EN 301 908-13 V13.2.1:2022; EN 303 413 V1.2.1:2021; EN 62479:2010; EN 50663:2017; EN 50385:2017; EN IEC 62311:2020; EN 62311:2008; EN 62368-1:2014/A11:2017
• EMC
• CE-EMC：EN 55032:2015/A11:2020;EN 55035:2017/A11:2020;EN 50130- 4:2011/A1:2014;EN IEC 61000-3-2:2019/A1:2021;EN 61000-3-3:2013/A2:2021
• Safety
• CB：IEC 62368-1:2018
• CE-LVD：EN 62368-1:2014/A11:2017
• Environment: CE-RoHS: 2011/65/EU
• Protection: IP66
