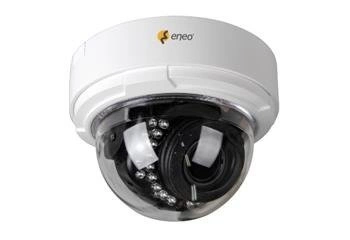

Kamera IP kopułkowa Eneo IED-63M2812P0A, ONVIF, PoE, 12VDC
- Kamera IP kopułkowa 1/2.8", rozdzielczość 3 Megapixele
Kamera IP kopułkowa 1/2.8", rozdzielczość 3 Megapixele, tryb dzień/noc 2048x1536, Infrared 2.8-12 mm, 12VDC, PoE, Indoor
| Camera: | |
| Sensor size | 1/2.8" |
| Resolution standard | 3 Megapixel |
| Imager | CMOS, Sony STARVIS, Sensor IMX124 |
| System | True Day&Night |
| Sensitivity | 0,1 Lux, at F1.4, 50 IRE |
| Low speed shutter | yes |
| Manual electronic shutter (MES) | 1~1/10000Sek. |
| Automatic electronic shutter (ESC) | 1~1/10.000sec. |
| Wide Dynamic Range (WDR) | D-WDR |
| Flickerless function | yes |
| Backlight compensation | BLC, HLC |
| Day/Night switching | auto, day, night |
| IR cut filter | switchable |
| White balance | automatic, fluorescent, outdoor, manual, Light bulb |
| Signal-to-noise ratio | 50dB |
| Video: | |
| Resolution | 2048x1536 (4:3), 1920x1080 (16:9), 1280x1024 (5:4), 1280x960 (4:3), 1280x720 (16:9), 1024x768 (4:3), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 640x360 (16:9), 320x240 (4:3) |
| Resolution max. | 2048x1536 |
| Stream types | 2x H.264, 1x MJPEG multiple |
| Image transmission rate max. | 30 fps |
| Mulitcast compliant | yes |
| Compression standard | H.264, M-JPEG |
| Lens: | |
| Lens type | Varifocal (motorized) |
| Zoom factor | 4x |
| Focal length | 2,8 - 12 mm |
| Digital zoom | yes |
| MOD (Minimum object distance) | 0,2 m |
| Iris control | DC |
| Vertical angle of view | 61 - 26 ° |
| Horizontal angle of view | 83 - 35 ° |
| Features: | |
| Motion detector | yes |
| Analysis functions | motion detection, tampering protection, trip wire detection with counting and direction detection, Field detection, Defog |
| Alarm processing | recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UPD, HTTPS, XML, alarm out |
| Rotation range | 360 ° |
| Audio | 2 Way Audio |
| Audio support | yes |
| e-PTZ support | yes |
| Internal storage | microSDHC card, microSDXC card |
| Menu languages | English, German, French, Russian, Chinese, Korean, Japanese |
| Privacy zones masking | Areas-ON/OFF switchable |
| Remote configuration | web browser |
| Web browser | MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited |
| User interface | Type B (white / blue) |
| Mirror function | H-flip, mirror |
| Digital Noise Reduction (DNR) | yes |
| Network: | |
| Network protocols | TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS |
| Interfaces / Inputs / Outputs: | |
| External connections | alarm output, alarm input, audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.40cm |
| Ethernet interface | 10Base-T, 100Base-TX |
| Alarm inputs | 1 |
| Alarm outputs | 1 |
| General: | |
| Series | eneo Economy Class |
| Dimensions (HxWxD) | 94x130mm |
| Illumination | infrared, 28x LED 850nm |
| Illumination range | approx. 25m |
| Colour (housing) | white |
| Colour (bubble) | clear |
| Housing | indoor |
| Housing material | plastic |
| Weight | 400g |
| Heater | no |
| Power consumption | 6W |
| Blower | no |
| Mounting | wall mount, ceiling mount |
| ONVIF | ONVIF Profile S |
| Power over Ethernet | IEEE 802.3af |
| Window heater | no |
| SDK | upon request |
| Supply voltage | 12VDC, PoE |
| Temperature range (operation) | -10°C ~ +50°C |
| Text display | supplied |
| Vandalism resistant | no |
| Scope of delivery: | |
| Parts supplied | manual, eneo Site Manager, bag of screws |
| Notes: | |
| Remarks | ###Please note that the automatic mode and permanent use of Zoom function may have an adverse affect on the lifetime of the camera. |
